NTW DIAMOND CORING THIN WALL WIRELINE DRILL ROD
Wireline drill rods are an essential tool for drilling in the mining and oil and gas industries. They are used to extract core samples from the earth's surface and provide valuable information about the geological formations below. Wireline drill rods are made from high-quality steel and are designed to withstand the harsh conditions of drilling. They come in various lengths and diameters to suit different drilling requirements.

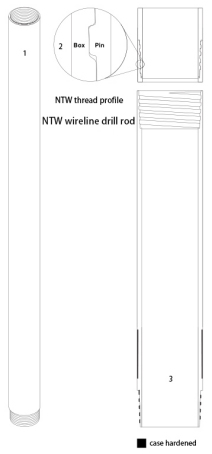

NTW drill rod configuration:
1-NTW drill rod overview
2-NTW drill rod box and pin thread profile
3-NTW drill rod case hardened illustration
NOTE:
(1)1.5 m/5 ft and 3 m/10 ft NTW drill rods are available.
| NTW Rod Nonimal Parameter | Metric | Imperial |
| NTW Drill Rod OD | 73.0 mm | 2.875 in |
| NTW Drill Rod ID | 64.2 mm | 2.525 in |
| NTW Drill Rod Weight | 22.3 kg/m3 | 49.8 lb/10 ft |
| NTW Drill Rod Thread Pitch | 6.35 mm | 4 in |
| NTW Drill Rod Pin Thread Length | 44.45 mm | 1.75 in |
NTW Drill Rods Package Specifications
3.0 m/10 ft Rod Bundle (40 Rods)
Dimensions (L x W x H) 3100 x 380 x 430 mm
Volume 0.51 m3
Gross Weight 616 kg
1.5 m/5 ft Rod Bundle (40 Rods)
Dimensions (L x W x H) 1600 x 380 x 430 mm
Volume 0.26 m3
Gross Weight 318 kg
Container Shipments:
20 ft container load of 3.0 m/10 ft rods holds 25 bundles (around1000 rods)
40 ft container load of 3.0 m/10 ft rods holds 33 bundles (around1300 rods)
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
|
|
