BQ SURFACE DRILLING WIRELINE DOUBLE TUBE CORE BARREL
Drilling is an essential process in several industries, including mining, oil and gas exploration, and construction. The process involves drilling holes into the earth's surface to extract minerals, oil, or gas or to create tunnels or foundations for buildings. To ensure efficient and accurate drilling, it is crucial to have the right tools and equipment. One such tool is the drilling core barrel.
| SIZE | CORE DIAMETER | HOLE DIAMETER | ||
| mm | inch | mm | inch | |
| Q Series Core Barrels (standard double tube) | ||||
| BQ | 36.5 | 1.437 | 60.0 | 2.362 |
| BQ Core Barrel Assembly | ||
| Item | Part No. | Description |
| 1-10 | PC306411 | Core Barrel Assembly,BQ 1.5M |
| 1-10 | PC306412 | Core Barrel Assembly,BQ 3.0M |
| BQ Inner Tube Assembly | ||
| Item | Part No. | Description |
| 1-5 | PC3542999 | Inner Tube Assembly,BQ 1.5M |
| 1-5 | PC3543000 | Inner Tube Assembly,BQ 3.0M |

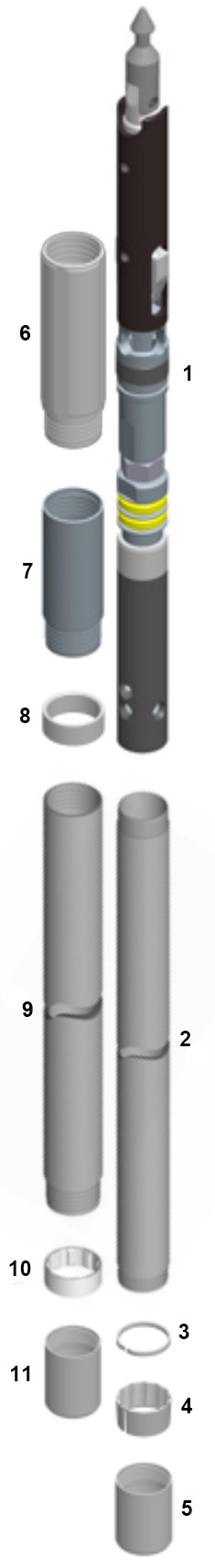

| BQ Core Barrel Kit | ||
| Item | Part No. | Description |
| 1 | PC3542292 | Head Assembly, BQ |
| 2 | PC24356 | Inner-tube, BQ 1.5 M |
| PC24339 | Inner-tube, BQ 3 M | |
| 3 | PC24831 | Stop Ring, BQ |
| 4 | PC30487 | Core Lifter, BQ Slotted |
| PC3546910 | Core Lifter, BQ Slotted(diamond coated) | |
| PC24342 | Core Lifter, BQ Fluted | |
| PC5001509 | Core Lifter, BQ Fluted(diamond coated) | |
| 5 | PC24830 | Core Lifter Case, BQ |
| 6 | PC3545400 | Locking Coupling, BQ Full-hole with Tang |
| PC3545401 | Locking Coupling, BQ Full-hole | |
| PC5007783 | BQ Stabilized Locking Coupling with Tang | |
| PC5007781 | BQ Stabilized Locking Coupling | |
| 7 | PC24833 | Adapter Coupling, BQ |
| 8 | PC24345 | Landing Ring, BQ |
| 9 | PC24357 | Outer-tube, BQ 1.5 M |
| PC24346 | Outer-tube, BQ 3.0 M | |
| 10 | PC44406 | Stabilizer, BQ Inner-tube |
| 11 | ------ | Thread Protector |
NOTE:
*Reaming shell and core bit not included in the core barrel assembly.
**Other length or extended core barrel is also available
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
|
|
