BQ NQ HQ PQ UNDERGROUND COMPACT WATER SWIVEL

PEERCHEER offers BQ NQ HQ underground compact water swivel for use with BQU NQU HQU core barrels and rods. BQ NQ HQ underground compact water swivels are designed to provide a watertight or airtight rotating joint to connect the pump to the drill string with a high pressure hose. Most water swivels can use with a variety of flushing mediums including water, air, foam, or bentonite drilling fluids.standard universal water swivels are available to connect to standard BQ NQ HQ coring system.

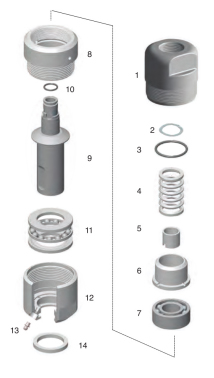

BQ NQ HQ underground compact water swivel standard configuration:

1-Water Swivel Cap

2-Wavy Washer

3-O Ring

4-Swivel Packing

5-Wear Sleeve

6- Packing Cage

7-Thrust Bearing

8-Upper Swivel Body

9-Water Swivel Spindle

10-O Ring

11-Thrust Bearing

12-Water Swivel Body

13-Grease Fitting

14-Felt Seal

NOTE:

(1) #16 NPT hose connection.

(2) AW rod box spindle connection.

(3) 5/8" spindle fluid porting.
