BQ NQ HQ PQ STANDARD HOISTING PLUG
PEERCHEER offers s BQ NQ HQ PQ standard hoisting plug core for use
with BQ NQ HQ PQ BT NT HT PT BTW NTW HTW drill rods and other
casing. BQ NQ HQ PQ standard hoisting plug is the tool to place the
rods in their drilling position and to help lifting the drill rods
or casing. Hoisting plugs are available to in standard BQ NQ HQ PQ
size rod and casing.
BQ NQ HQ PQ Hoist Plug Features:
-Long-life thrust roller bearing
-12.5 mm (0.5 in) diameter down-angled vent is incorporated into
the body to eliminate side spray from pressurized drilling fluid.
-NW rod box spindle connection

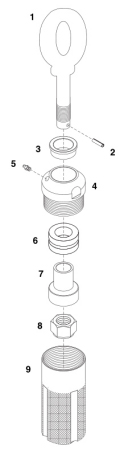

BQ NQ HQ PQ standard hoisting plug configuration: 1-Eye Bolt 2-Spring Pin 3-Wear Sleeve 4-Hoist Plug Bearing Housing 5-Grease Fitting 6-Hoisting Plug Bearing 7-Hoist Plug Shaft Sleeve 8-Lock Nut 9-Hoist Plug Lower Housing |  |
| BQ NQ HQ PQ Nonimal Weight(with adapter) | kg | Ibs |
| BQ Standard Hoisting Plug(approx.) | 12.50 | 27.56 |
| NQ Standard Hoisting Plug(approx.) | 13.50 | 29.76 |
| HQ Standard Hoisting Plug(approx.) | 14.50 | 31.97 |
| PQ Standard Hoisting Plug(approx.) | 16.50 | 36.38 |
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
|
|
